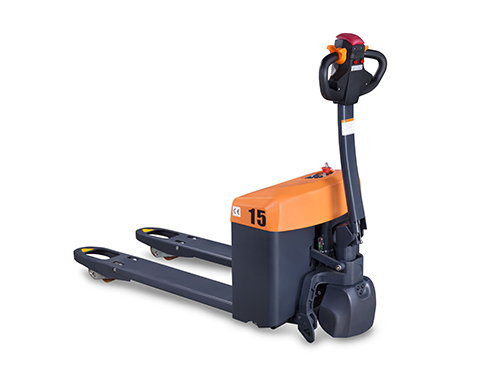

1.5 Ton Mini Pallet Truck

Description of 1.5 Ton Mini Pallet Truck:
Zowell XPC15 1.5 ton mini pallet truck is a pedestrian one that can provide safe and easy horizontal movement for low-intensity work. This mini electric pallet truck can be used in offices, retail stores, print shops, and so on. Featuring 1500kg load capacity and compact size, our mini electric pallet truck is an ideal choice for many places.

Features of 1.5 Ton Mini Pallet Truck::
1. Compact structure and easy to operate.
2. CURTIS electronic controller.
3. Chinese handle.
4. Maintenance-free batteries.
5. Emergency reverse device in the handle provides improved operating safety.
6. Emergency power disconnect switch.

1.5 Ton Mini Pallet Truck
Technical Parameters of 1.5 Ton Mini Pallet Truck:
Identification Product model 　 XPC15
Drive unit 　 Electrics
Operating type 　 Pedestrian
Load capacity Q (t) 1.5
Load center distance c (mm) 600
Load distance, center of drive axle to back of fork x (mm) 959
Wheelbase y (mm) 1295
　
Weight Truck weight (without battery) kg 242
Axle loading, loaded (front/rear) kg 585/1157
Axle loading, unloading (front/rear) kg 169/73
　
Wheel Tires 　 PU
Tire size, front Ø × w (mm) Ø 210 × 70
Tire size, rear Ø × w (mm) Ø80 × 70
Wheels, number front/rear (x = driven wheels) 　 1x + 4
Tread, rear      b11 (mm) 360/410/520
　
Dimension Lift h3 (mm) 125
Min. / max. of handle in drive position h14 (mm) 1160/719
Fork , lowered h13 (mm) 80
Overall length L1 (mm) 1648
Length to face of forks L2 (mm) 492
Overall b1/b2 (mm) 630
Fork dimensions s / e / l (mm) 56/160/1150
Overall fork b5 (mm) 570
Ground clearance, centre of wheelbase(min) m2 (mm) 24
Aisle for pallets 1000 × 1200 crossways Ast (mm) 2212
Aisle for pallets 800 × 1200 crossways Ast (mm) 2124
Turning radius(min) Wa (mm) 1457
　
Performance Travel speed loaded/unload km/h 3.5/4
Lift speed loaded/unload m/s 0.04/0.05
Lowering speed oaded/unload m/s 0.05/0.04
Max. gradeability loaded/unload % 4/10
Service brake 　 Electromagnetic
　
Electric Motor Drive motor rating S2 60 min kW 0.75
Lift motor rating at S3 15 % kW 0.8
Battery voltage / nominal capacity K5 V/Ah 24/80
Battery weight kg 25 × 2
　
Others Type of drive control 　 DC Curtis
Noise level dB (A) 70

Suzhou Pioneer Material Handling Equipment & Technology Co., Ltd is a professional manufacturer of 1.5 Ton Mini Pallet Truck in China. Besides, we also provide customers with electric stacker, electric reach truck, electric tow tractor, scissor lift, aerial order picker, manual warehouse equipment, customized truck, and more. With high quality and competitive price, our products have been quite popular among customers from as many as 40 countries and regions, and many of our products have obtained CE and ISO9001:2008 certification. If you're interested in our 1.5 Ton Mini Pallet Truck, please contact us freely.
